FH Series

Main features:

Very lightweight, compact and streamline design.

Mounting bracket allows wall or surface mounting

with the possibility of tilting upwards or downwards. SW LED Flood.jpg

Body: Aluminium die-cast. Cover: Tempered glass.

✔️Replacement for floodlights with halogen lamps

✔️Outdoor use (IP65)

✔️Pass EMC

✔️Bright, robust and durable

✔️Energy savings of up to 70 % compared to

     halogen lamp floodlights

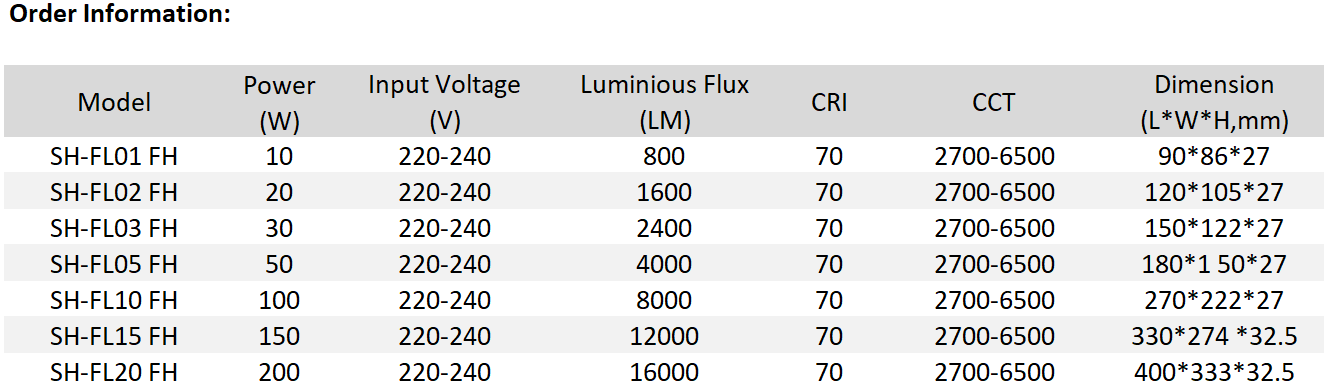

Main Spec.:
Wattage10-200WRatingsIP65/IK05
Voltage220-240VMaterialDiecasting Aluminum for housing
Luminous Flux800-16000lmOperation Temperature-20°C to +40°C
Efficacy80lm/wLifetime
CRI70Warranty2 years
CCT2700-6500KCertification
Beam Angle120°

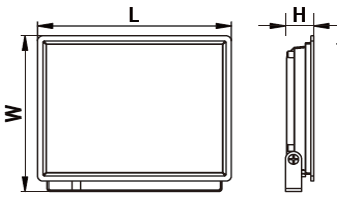

Dimension:                                                            Photometric:

image.png                                  image.png
